Products / Network video recorders / NVR3416-P16

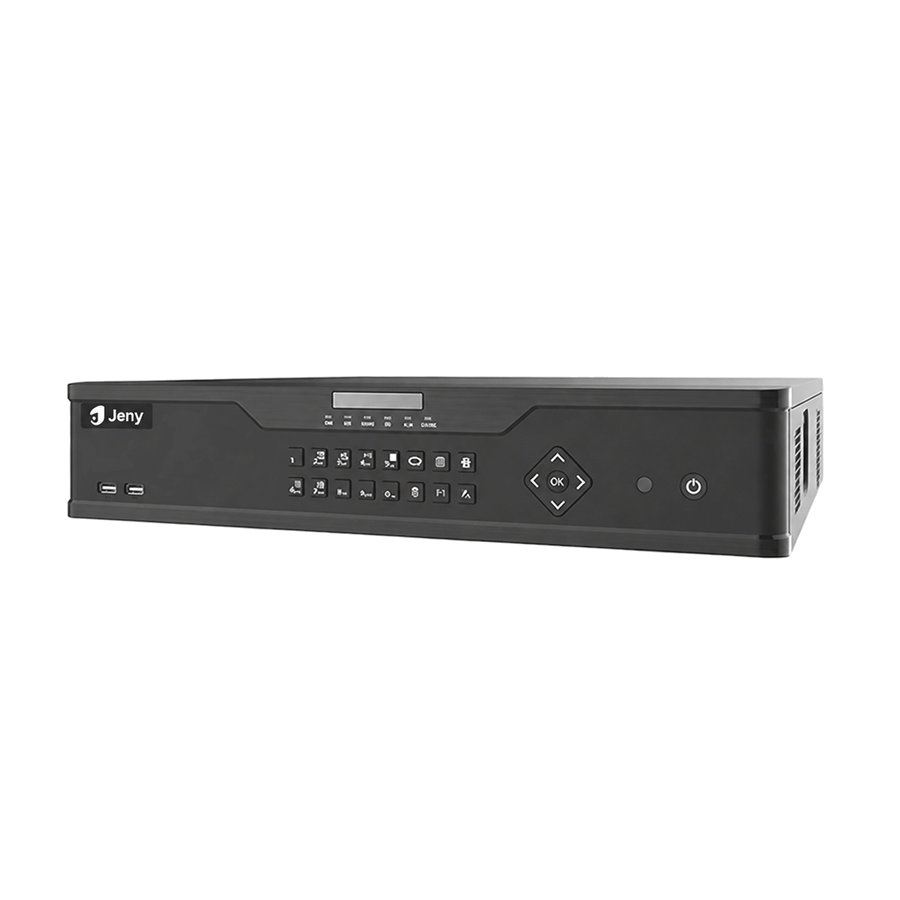

NVR3416-P16 Available to order
16-Channel 12MP PoE Recorder, 4 Drives
A rack-size recorder with four drive bays and 12MP recording for commercial sites that need long retention.
16 channels16 PoE ports4 hard drivesUp to 12MP
Where to buy
JENY products are supplied and installed by authorised installers, so your system is set up properly from day one.
Key features
- Sixteen independent PoE ports
- Records cameras up to 12MP
- Four SATA bays, up to 10 TB each
- Two independent HDMI outputs, one 4K
- 16 alarm inputs, 4 alarm outputs, RS485
- Works with third-party ONVIF cameras
Specifications
| Model | NVR3416-P16 |
|---|---|
| Camera channels | 16 |
| PoE ports | 16 (IEEE 802.3at, max 200 W total) |
| Decoding capability | 3 × 12MP, 4 × 4K, 8 × 4MP or 16 × 1080p |
| Video output | HDMI 1 / VGA up to 1080p, HDMI 2 up to 4K |
| Hard drives | 4 × SATA, up to 10 TB each |
| Network | 1 × Gigabit Ethernet |
| Alarm inputs / outputs | 16 / 4 |
| USB | 2 × USB 2.0 front, 1 × USB 3.0 rear |
| Power | 100–240 V AC |
| Dimensions | 442 × 425 × 86 mm |
Specifications may change without notice. Confirm details with your installer before purchase.
